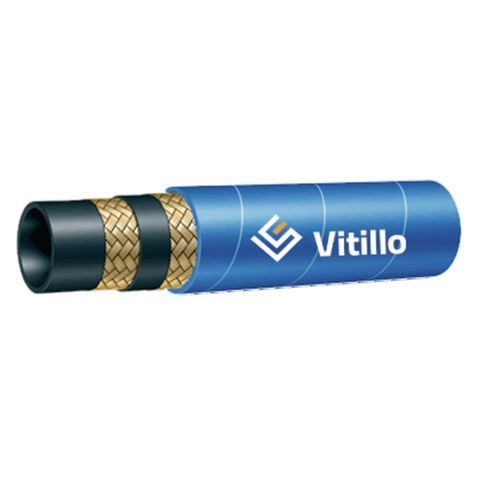

VULCAN 2 EXCEED EN 853 2SN - SAE 100 R2AT

Vitillo
Codice TH2SN32V2 D.N 51 Hose Size

50.8 mm
2”

Outside Diameter 66.5 mm Max Working Pressure 90 bar €24.91 Quantita
Codice TH2SN20V2 D.N 31 Hose Size

25.4 mm
1”

Outside Diameter 47.3 mm Max Working Pressure 125 bar €20.30 Quantita
Codice TH2SN24V2 D.N 38 Hose Size

38.1 mm
1 1/2”

Outside Diameter 53.8 mm Max Working Pressure 100 bar €20.30 Quantita
Codice TH2SN16V2 D.N 25 Hose Size

25.4 mm
1”

Outside Diameter 37.6 mm Max Working Pressure 165 bar €10.67 Quantita
Codice TH2SN12V2 D.N 19 Hose Size

19.0 mm
3/4”

Outside Diameter 29.5 mm Max Working Pressure 215 bar €8.32 Quantita
Codice TH2SN10V2 D.N 16 Hose Size

16.0 mm
5/8”

Outside Diameter 25.5 mm Max Working Pressure 250 bar €5.96 Quantita
Codice TH2SN08V2 D.N 12 Hose Size

12.8 mm
1/2”

Outside Diameter 22.3 mm Max Working Pressure 275 bar €5.01 Quantita
Codice TH2SN06V2 D.N 10 Hose Size

9.5 mm
3/8”

Outside Diameter 19.1 mm Max Working Pressure 330 bar €4.13 Quantita
Codice TH2SN05V2 D.N 8 Hose Size

7.9 mm
5/16”

Outside Diameter 16.8 mm Max Working Pressure 350 bar €3.63 Quantita
Codice TH2SN04V2 D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 15.1 mm Max Working Pressure 400 bar €3.33 Quantita
Codice TH2SN03V2 D.N 5 Hose Size

4.8 mm
3/16”

Outside Diameter 13.3 mm Max Working Pressure 415 bar Quantita
Available on Request
  • Tipo di tubi: Special braided hose
  • Applicazione : Air Compressor Systems - Air Lines - High Temperatures
  • Available Cover : Standard
  • Available Cover Color : Blue
  • OOperating Temperature Range: - 20°C/+135°C (-4°F / +275°F) with peaks of 150°C (302°F)
  • Tube : Air resistant synthetic rubber
  • Rinforzo : 2 high tensile steel braids
  • Cover : Synthetic rubber with high ozone, weather and heat resistence

Hose features:  High temperatures Ozone resistance

Product Notes
COMPRESSED AIR APPLICATIONS REQUIRE A PIN PRICK COVER


NOTA BENE: Il prezzo indicato è per metro di tubo flessibile, il massimo singola lunghezza della bobina è 100m per 1/4 ", 3/8", 1/2 "e 3/4", 50 metri per 1 ".
