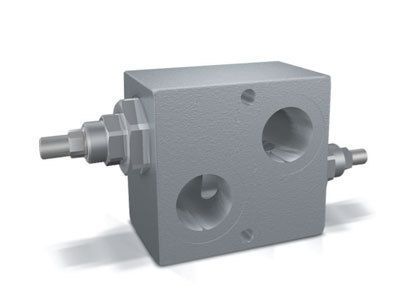

VAU 1 - Differential Dual Cross Relief Valves, 1”

Oleodinamica Marchesini In Stock
Code V0470/400 Type VAU 1" 50-400 BAR Net Price €125.84 Quantity
Code V0470/T… Type VAU 1" TARATE/SET … BAR Net Price €97.00 Quantity
Code V0470/V400 Type VAU 1" 50-400 BAR C/VOLANTINO/HANDKNOB Net Price €91.00 Quantity
Code V0470/P… Type VAU 1" PIOMBATE/SEALING CAP … BAR Net Price €106.00 Quantity
Code V0470/PP400 Type VAU 1" PRED.PIOMB./PRED.SEALING CAP 50-400B. Net Price €99.00 Quantity

Use and Operation
Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/hydraulic motor. It’s ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well. The differential valve makes the opening slower but more constant setting even with flow changes.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

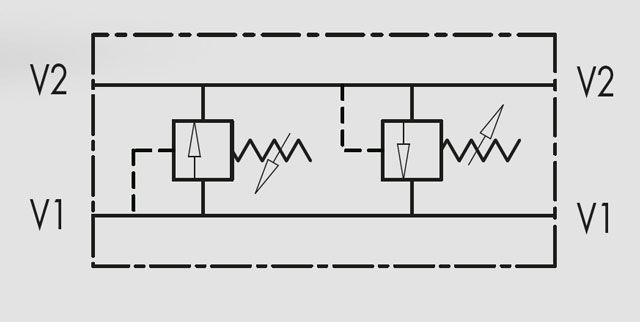

Connect V1 and V2 to the pressure flow or to the actuator/hydraulic motor. Vice versa for the remaining ports V1 and V2. Mounting by the actuator is highly recommended in order to avoid pressure drops.

On Request

  • different setting range
  • other setting available (CODE/T: please specify the desired setting)
