Type
VAU 1/4" PRED.PIOMB./PRED.SEALING CAP 10-180B.
Net Price
€38.61
Quantity
Add to Cart
Code
V0440/PP180
Type
VAU 3/8" PRED.PIOMB./PRED.SEALING CAP 10-180B.
Net Price
€40.04
Quantity
Add to Cart
Code
V0450/PP180
Type
VAU 1/2" PRED.PIOMB./PRED.SEALING CAP 10-180B.
Net Price
€38.61
Quantity
Add to Cart
Code
V0460/PP180
Type
VAU 3/4" PRED.PIOMB./PRED.SEALING CAP 10-180B.
Net Price
€50.05
Quantity
Add to Cart
Use and Operation

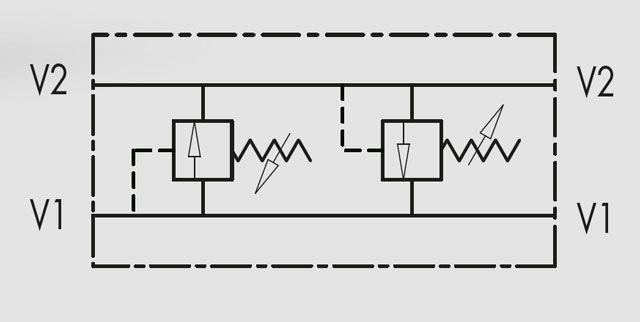

Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/hydraulic motor. It’s ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well.
Materials and Features
Body: zinc-plated steel
Internal Parts: hardened and ground steel
Seals: BUNA N standard
Poppet Type: minor leakage
Applications
Connect V1 and V2 to the pressure flow or to the actuator/hydraulic motor. Vice versa for the remaining ports V1 and V2. Mounting by the actuator is highly recommended in order to avoid pressure drops.
On Request
different setting range
other setting available (CODE/T: please specify the desired setting)
