Use and Operation
In the check valves flow is free in one direction and blocked in the reverse one.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Poppet Type: any leakage

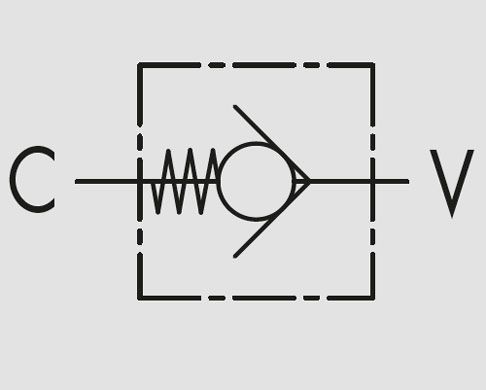

Connect V to the pressure flow and C to the actuator. Flow is free from V to C and blocked in the reverse direction.
- Different cracking pressures: 1-3-5-8 bar (please specify the desired cracking pressure in the product description). Set valve is used to keep a hydraulic system under pressure.
- NPT thread (code VN... instead of V0... example: VU ¼” NPT code = VN590)
- Body in stainless steel (CODE/AI example: VU ¼” INOX code = V0590/AI)
