VBPDE AL - Double Pilot Operated Check Valves With Lateral Joins

Oleodinamica Marchesini In Stock
Code V0181 Type VBPDE 1/4” AL Net Price €24.31 Quantity
Code V0182 Type VBPDE 3/8” AL Net Price €28.60 Quantity

Use and Operation
Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. The feature of this valve is the side positioned ports.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications

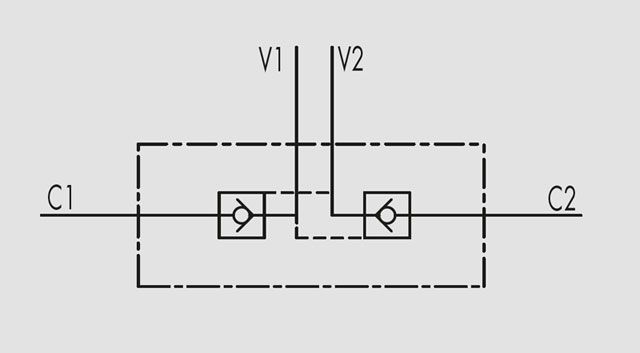

Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator by the screw.

On Request

  • without seal on pilot piston
