VBCDF DE OMS - Double Overcentre Valves Flangeable On Danfoss Motors OMS

Oleodinamica Marchesini In Stock
Code V0416 Type VBCDF 1/2” SE OMS Net Price €51.48 Quantity
Code V0416/SF Type VBCDF 1/2” SE OMS SF Net Price €55.77 Quantity
Code V0426 Type VBCDF 1/2” DE OMS Net Price €87.23 Quantity

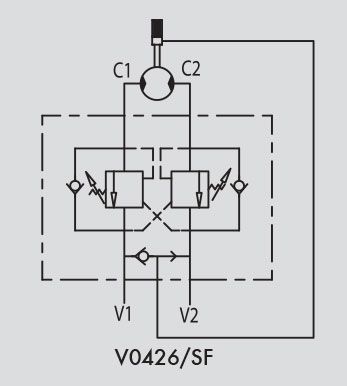

Code V0426/SF Type VBCDF 1/2” DE OMS SF Net Price €91.52 Quantity

Use and Operation
These valves are used to control actuator’s movements and block in one direction (SE) or in both directions (DE) in order to have a under control descent of a load; load’s weight doesn’t carry it away, as the valve prevents any cavitations of the actuator.Direct flange is ideal for Danfoss engine type OMS and provides a maximum safety, very low pressure drops and solid installation.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage
  • Standard Setting: 320 BarValve setting must be at least 1,3 times more than load    pressure in order to enable the valve to close even when undergone to maximum load pressure.

Applications

  • Single pilot: connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and flange C2 to the motor’s side you want the flow to be blocked.
  • Double pilot: connect V1 and V2 to the pressure flow and flange C1 and C2 directly to the engine.

On Request

  • other settings available
  • sealing cap (CODE/P) and arranged for sealing cap (CODE/PP)
