Use and Operation

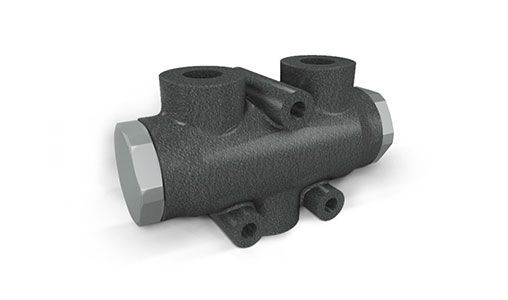

These valves allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction independently of any pressure changes and flow.
These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single distributor, must move simultaneously both at input and output.
Materials and Features
- Body: cast iron - steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard and Teflon
- Poppet Type: by diameter combination. Minor leakage Cylinder stroke error tolerance of 2%. Any synchronisation differences are compendated by the terminal position of the stroke.

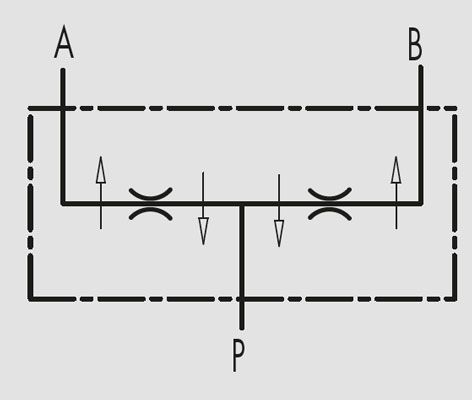

Connect P to pressure flow and A and B to the actuators.
