Massello 1 - 1 Way Special Block For No-Stop Plough And Sub-Soilers Tillers

Oleodinamica Marchesini In Stock
Code V0295 Type VNS 3/8" Net Price €102.96 Quantity
Code V0296 Type VNS 1/2" Net Price €110.11 Quantity

Use and Operation
This valve is made up by 2 relief valves and 1 check valve. It is used to supply pressure to tanked systems on non-stop plough and sub-soilers tillers in order to provide protection against shocks.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications

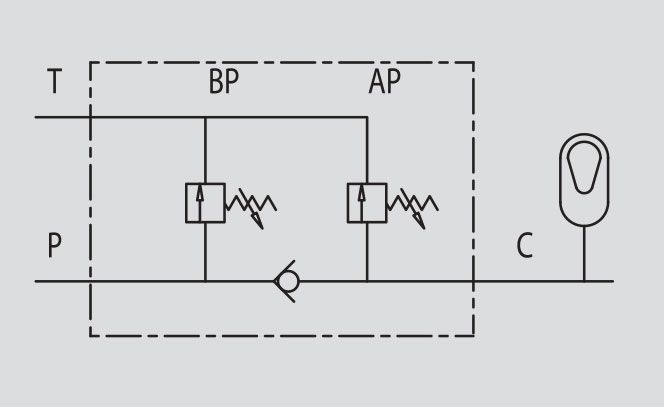

Connect P to the machine inlet, T to the draining or to the tank for the eventual oil reutilization and C to the system.

 Adjustment:

  • BP adjusts the charge pressure of system and is set at 80 Bar
  • AP adjusts the eventual security drainage opening and is set at 250 Bar
