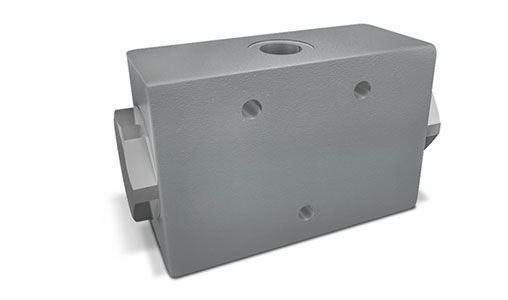

DFL - 2 Ways Steel Flow Divider

Oleodinamica Marchesini In Stock
Code V1020 Type DFL 1 - 3 Net Price €97.24 Quantity
Code V1021 Type DFL 3 - 6 Net Price €97.24 Quantity
Code V1022 Type DFL 6 - 10 Net Price €97.24 Quantity
Code V1023 Type DFL 10 - 20 Net Price €97.24 Quantity
Code V1024 Type DFL 20 - 32 Net Price €97.24 Quantity
Code V1025 Type DFL 25 - 40 Net Price €97.24 Quantity
Code V1026 Type DFL 40 - 60 Net Price €97.24 Quantity
Code V1027 Type DFL 60 - 80 Net Price €97.24 Quantity

Use and Operation
These valves allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction independently of any pressure changes and flow.

These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single distributor, must move simultaneously both at input and output.

Materials and Features

  • Body: cast iron - steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard and Teflon
  • Poppet Type: by diameter combination. Minor leakage Cylinder stroke error tolerance of 2%. Any synchronisation differences are compendated by the terminal position of the stroke.

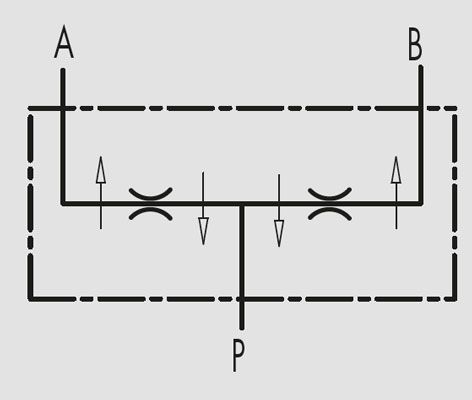

Connect P to pressure flow and A and B to the actuators.
