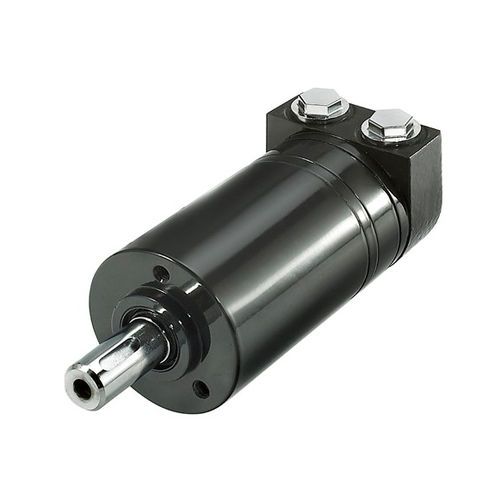

151G0013 - OMM 50-ALB.CIL. Ø16 - Danfoss

Danfoss In Stock

Orbital Motors, we provide a wide range of hydraulic motors of different types, sizes, and with different versions of outlet shaft. The range includes motors with displacements from 8 to 800 cc/rpm. The speed may vary approximately from 2500 rpm/min for the smallest motor up to 600 rpm/min for the largest one.

€180.01
Mounting Flange Standard
Shaft Style Cylindrical
Shaft Size 16 mm; M6 x 1 tap
Shaft Key A5 x 5 16 mm (DIN 6885)
Port Style Side port
Port Dimension G 3/8
Drain Port Style Standard
Drain Port Dimension G 1/8
Painted None
Geometric Displacement 50 [3.08]
Max Inlet Pressure Cont 140 [2030]
Max Inlet Pressure Int 175 [2540]
Max Inlet Pressure Peak 225 [3260]
