H1B060A-T2D2-NBTB-VNAN-NA05NN-023Z21-NNN - Danfoss

Danfoss In Stock

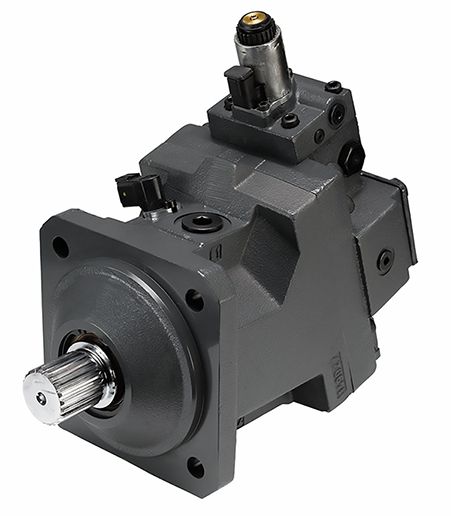

Series H1 variable displacement motors are bent axis design, incorporating spherical pistons. These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic power. Series H1 motors have a large maximum/minimum displacement ratio of 5:1 and high output speed capabilities.

Frame Size 060 cc/rev
Control T2 el 2pos, 24V DT04, de-en min
PCOR, BPD D2 w/PCOR & el BPD 24V, P2, T2&TA
Endcap Type & Ports TB 2pos, SP, Metric
Flange & Housing VN SAE, no sensor
Shaft & Speed Ring AN 14T 12/24, No speed ring
Sensor N No speed sensor
Loop Flushing Relief Valve 05 5 l/min, 16 bar, no adjust
Minimum Displacement 023 min displacement
