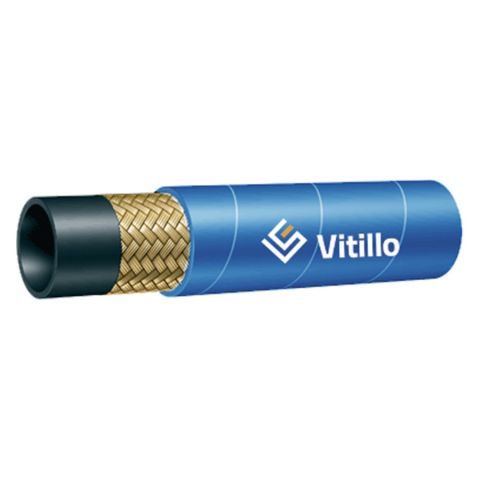

VULCAN 1 EXCEED EN 853 1SN - SAE 100 R1AT

Vitillo
Code TH1SN32V1 D.N 51 Hose Size

50.8 mm
2”

Outside Diameter 63.5 mm Max Working Pressure 40 bar €20.18 Quantity
Code TH1SN24V1 D.N 38 Hose Size

38.1 mm
1 1/2”

Outside Diameter 50.1 mm Max Working Pressure 50 bar €15.29 Quantity
Code TH1SN20V1 D.N 31 Hose Size

31.8 mm
1 1/4”

Outside Diameter 43.4 mm Max Working Pressure 63 bar €13.14 Quantity
Code TH1SN16V1 D.N 25 Hose Size

25.4 mm
1”

Outside Diameter 36.0 mm Max Working Pressure 88 bar €9.78 Quantity
Code TH1SN12V1 D.N 19 Hose Size

19.0 mm
3/4”

Outside Diameter 27.9 mm Max Working Pressure 105 bar €5.95 Quantity
Code TH1SN10V1 D.N 16 Hose Size

16.0 mm
5/8”

Outside Diameter 23.8 mm Max Working Pressure 130 bar €5.04 Quantity
Code TH1SN08V1 D.N 12 Hose Size

12.8 mm
1/2”

Outside Diameter 20.6 mm Max Working Pressure 160 bar €3.95 Quantity
Code TH1SN06V1 D.N 10 Hose Size

9.5 mm
3/8”

Outside Diameter 17.5 mm Max Working Pressure 180 bar €3.39 Quantity
Code TH1SN05V1 D.N 8 Hose Size

7.9 mm
5/16”

Outside Diameter 15.1 mm Max Working Pressure 215 bar €2.93 Quantity
Code TH1SN04V1 D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 13.5 mm Max Working Pressure 225 bar €2.53 Quantity
Code TH1SN03V1 D.N 5 Hose Size

4.8 mm
3/16”

Outside Diameter 11.9 mm Max Working Pressure 250 bar Quantity
Available on Request
  • Hose Type: Special braided hose
  • Application : Air Compressor Systems - Air Lines - High Temperatures
  • Available Cover : Standard
  • Available Cover Color : Blue
  • Operating Temperature Range: - 20°C/+135°C (-4°F / +275°F) with peaks of 150°C (302°F)
  • Tube : Air resistant synthetic rubber
  • Reinforcement : 1 high tensile steel braid
  • Cover : Synthetic rubber with high ozone, weather and heat resistence

Hose features:  High temperatures Ozone resistance

Product Notes
COMPRESSED AIR APPLICATIONS REQUIRE A PIN PRICK COVER


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
