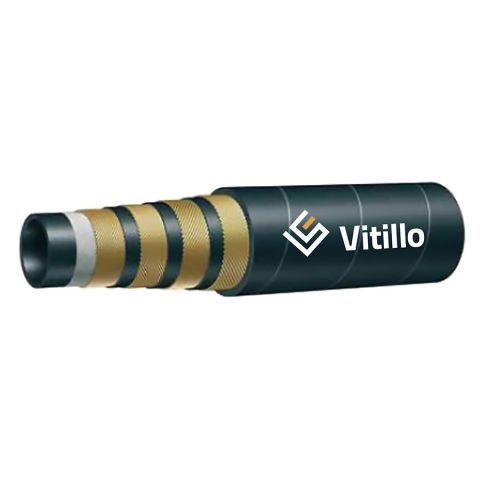

TEKNOSPIR /4SH - Vitillo
Download Datasheet

TEKNOSPIR /4SH EN 856 4SH - ISO 3862 4SH

Vitillo
Code TS4SH24EV D.N 38 Hose Size

38.1 mm
1 1/2 “

 Outside Diameter 53.0 mm Max Working Pressure 300 bar €30.27 Quantity
Code TS4SH24 D.N 38 Hose Size

38.1 mm
1 1/2 “

 Outside Diameter 53.0 mm Max Working Pressure 300 bar €27.05 Quantity
Code TS4SH20 D.N 31 Hose Size

31.8 mm
1 1/4 “

 Outside Diameter 45.4 mm Max Working Pressure 350 bar €16.69 Quantity
Code TS4SH16EV D.N 25 Hose Size

25.4 mm
1 “

 Outside Diameter 38.3 mm Max Working Pressure 385 bar €12.76 Quantity
Code TS4SH16 D.N 25 Hose Size

25.4 mm
1 “

 Outside Diameter 38.3 mm Max Working Pressure 385 bar €11.39 Quantity
Code TS4SH12 D.N 19 Hose Size

19.0 mm
3/4 “

 Outside Diameter 31.2 mm Max Working Pressure 420 bar €9.32 Quantity
Code TS4SH10FV D.N 16 Hose Size

16.0 mm
5/8 “

 Outside Diameter 28.5 mm Max Working Pressure 450 bar Quantity
Available on Request
Code TS4SH10 D.N 16 Hose Size

16.0 mm
5/8 “

 Outside Diameter 28.5 mm Max Working Pressure 450 bar Quantity
Available on Request
Code TS4SH10EV D.N 16 Hose Size

16.0 mm
5/8 “

 Outside Diameter 28.5 mm Max Working Pressure 450 bar Quantity
Available on Request
Code TS4SH12FV D.N 19 Hose Size

19.0 mm
3/4 “

 Outside Diameter 31.2 mm Max Working Pressure 420 bar Quantity
Available on Request
Code TS4SH12EV D.N 19 Hose Size

19.0 mm
3/4 “

 Outside Diameter 31.2 mm Max Working Pressure 420 bar Quantity
Available on Request
Code TS4SH16FV D.N 25 Hose Size

25.4 mm
1 “

 Outside Diameter 38.3 mm Max Working Pressure 385 bar Quantity
Available on Request
Code TS4SH20EV D.N 31 Hose Size

31.8 mm
1 1/4 “

 Outside Diameter 45.4 mm Max Working Pressure 350 bar Quantity
Available on Request
Code TS4SH20FV D.N 31 Hose Size

31.8 mm
1 1/4 “

 Outside Diameter 45.4 mm Max Working Pressure 350 bar Quantity
Available on Request
Code TS4SH24FV D.N 38 Hose Size

38.1 mm
1 1/2 “

 Outside Diameter 53.0 mm Max Working Pressure 300 bar Quantity
Available on Request
Code TS4SH32EV D.N 51 Hose Size

50.8 mm
2 “

 Outside Diameter 67.6 mm Max Working Pressure 250 bar Quantity
Available on Request
Code TS4SH32FV D.N 51 Hose Size

50.8 mm
2 “

 Outside Diameter 67.6 mm Max Working Pressure 250 bar Quantity
Available on Request
Code TS4SH32 D.N 51 Hose Size

50.8 mm
2 “

 Outside Diameter 67.6 mm Max Working Pressure 250 bar Quantity
Available on Request
  • Hose Type: Standard spiral hose
  • Application : Very High Pressure Hydraulic System
  • Available Cover : Standard - Evergreen - Forever
  • Available Cover Color : Black
  • Operating Temperature Range: - 40°C/+100°C (-40°F / +212°F) with peaks of 125°C (257°F)
  • Tube : Oil resistant synthetic rubber
  • Reinforcement : 4 high tensile steel spirals
  • Cover : Standard: synthetic rubber / Evergreen: synthetic rubber with high resistance to abrasion and to flame / Forever: synthetic rubber covered by a polyethylene film with high abrasion resistance
  • Type Approval: MSHA - DNV-GL - RINA - MarED

Hose features:  High pressure

PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
