TEKNOSPIR /13 EN 856 R13 - SAE 100 R13 - ISO 3862 R13

Vitillo
Code TSR1324EV D.N 38 Hose Size

38.1 mm
1 1/2 “

Outside Diameter 57.8 mm Max Working Pressure 350 bar Net Price €28.25 Quantity
Code TSR1324 D.N 38 Hose Size

38.1 mm
1 1/2 “

Outside Diameter 57.8 mm Max Working Pressure 350 bar Net Price €27.06 Quantity
Code TSR1320 D.N 31 Hose Size

31.8 mm
1 1/4 “

Outside Diameter 49.5 mm Max Working Pressure 350 bar Net Price €18.04 Quantity
Code TSR1316 D.N 25 Hose Size

25.4 mm
1 “

Outside Diameter 39.0 mm Max Working Pressure 350 bar Net Price €12.84 Quantity
Code TSR1312 D.N 19 Hose Size

19.0 mm
3/4 “

Outside Diameter 32.0 mm Max Working Pressure 350 bar Net Price €10.53 Quantity
Code TSR1312FV D.N 19 Hose Size

19.0 mm
3/4 “

Outside Diameter 32.0 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1312EV D.N 19 Hose Size

19.0 mm
3/4 “

Outside Diameter 32.0 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1316FV D.N 25 Hose Size

25.4 mm
1 “

Outside Diameter 39.0 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1316EV D.N 25 Hose Size

25.4 mm
1 “

Outside Diameter 39.0 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1320FV D.N 31 Hose Size

31.8 mm
1 1/4 “

Outside Diameter 49.5 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1320EV D.N 31 Hose Size

31.8 mm
1 1/4 “

Outside Diameter 49.5 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1324FV D.N 38 Hose Size

38.1 mm
1 1/2 “

Outside Diameter 57.8 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1332EV D.N 51 Hose Size

50.8 mm
2 “

Outside Diameter 71.6 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1332FV D.N 51 Hose Size

50.8 mm
2 “

Outside Diameter 71.6 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request
Code TSR1332 D.N 51 Hose Size

50.8 mm
2 “

Outside Diameter 71.6 mm Max Working Pressure 350 bar Net Price Quantity
Available on Request

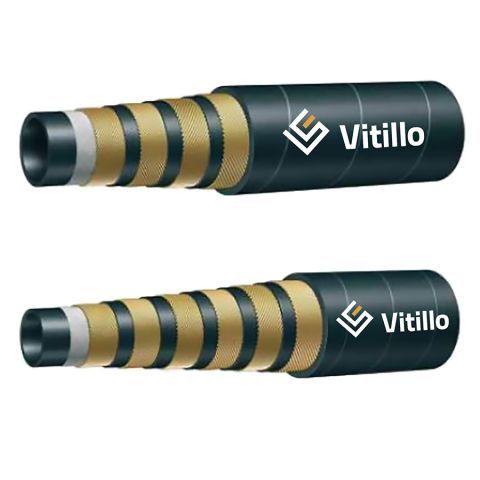

  • Hose Type: Standard spiral hose
  • Application : High Pressure Hydraulic System
  • Available Cover : Standard - Evergreen - Forever
  • Available Cover Color : Black
  • Operating Temperature Range: - 40°C/+120°C (-40°F / +248°F) with peaks of 125°C (257°F)
  • Tube : Oil resistant synthetic rubber
  • Reinforcement : 4 high tensile steel spirals or 6 high tensile steel spirals
  • Cover : Standard: synthetic rubberEvergreen: synthetic rubber with high resistance to abrasion and to flameForever: synthetic rubber covered by a polyethylene film with high abrasion resistance
  • Type Approval: MSHA

Hose features:  High pressure


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
