TEKNOMASTER - Vitillo
Download Datasheet

TEKNOMASTER

Vitillo In Stock
Code TM2SN16 D.N 25 Hose Size

25.4 mm
1 “

 Outside Diameter 37.5 mm Max Working Pressure 250 bar Net Price €6.92 Quantity
Code TM2SN12 D.N 19 Hose Size

19.0 mm
3/4 “

 Outside Diameter 29.1 mm Max Working Pressure 320 bar Net Price €4.83 Quantity
Code TM2SN10 D.N 16 Hose Size

16.0 mm
5/8 “

 Outside Diameter 25.2 mm Max Working Pressure 350 bar Net Price €4.16 Quantity
Code TM2SN08 D.N 12 Hose Size

12.8 mm
1/2 “

 Outside Diameter 22.1 mm Max Working Pressure 360 bar Net Price €3.27 Quantity
Code TM2SN06 D.N 10 Hose Size

9.5 mm
3/8 “

 Outside Diameter 18.5 mm Max Working Pressure 400 bar Net Price €2.86 Quantity
Code TM2SN04 D.N 6 Hose Size

6.4 mm
1/4 “

 Outside Diameter 14.4 mm Max Working Pressure 490 bar Net Price €2.52 Quantity
Code TM2SN05 D.N 8 Hose Size

7.9 mm
5/16”

 Outside Diameter 16.0 mm Max Working Pressure 480 bar Net Price €2.52 Quantity

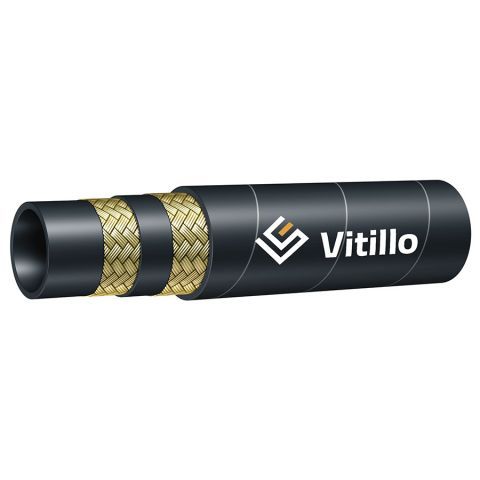

  • Hose Type: Special braided hose
  • Application : Reduced Bend Radius - Very High Pressure Hydraulic Lines
  • Available Cover : Standard
  • Available Cover Color : Black
  • Operating Temperature Range: - 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
  • Tube : Oil resistant synthetic rubber
  • Reinforcement : 2 high tensile steel braids
  • Cover : Synthetic rubber

Hose features:  High pressure

PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
