TEKNOJACK IJ100 HYDRAULIC JACK SPECIFIC

Vitillo In Stock
Code TJK2SN06 D.N. 10 Hose Size

9.5 mm
3/8”

Outside Diameter 17.0 mm Max Working Pressure 725 bar Net Price €2.89 Quantity
Code TJK2SN04 D.N. 6 Hose Size

6.4 mm
1/4”

Outside Diameter 15.0 mm Max Working Pressure 725 bar Net Price €2.88 Quantity

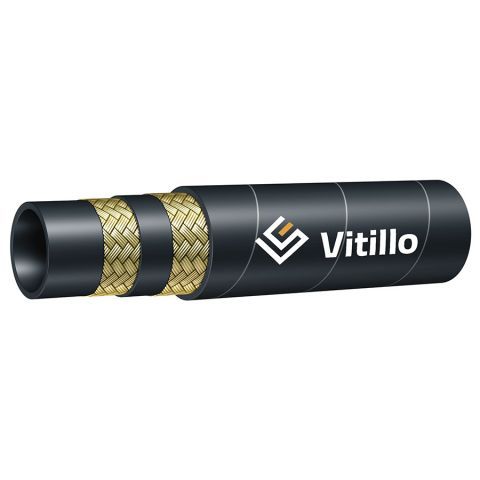

  • Hose Type: Special braided hose
  • Application: Extreme Static Pressure Lines - Jacking Systems
  • Available Cover: Standard
  • Available Cover Color: Black
  • Operating Temperature Range: - 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
  • Tube: Oil resistant synthetic rubber
  • Reinforcement: 2 high tensile steel braids
  • Cover: Synthetic rubber

Hose features:  High pressure Reduced bending radius Safety factor 2:1


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
