TEKNO R8 NON CONDUCTIVE SAE 100 R8 - UNI EN 855 - ISO 3949

Vitillo
Code THR802NC D.N 3 Hose Size

3.5 mm
1/8”

Outside Diameter 7.1 mm Max Working Pressure 420 bar Quantity
Available on Request
Code THR803NC D.N 5 Hose Size

4.8 mm
3/16”

Outside Diameter 10.0 mm Max Working Pressure 350 bar Quantity
Available on Request
Code THR804NC D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 11.8 mm Max Working Pressure 350 bar Quantity
Available on Request
Code THR805NC D.N 8 Hose Size

8.0 mm
5/16”

Outside Diameter 14.3 mm Max Working Pressure 325 bar Quantity
Available on Request
Code THR806NC D.N 10 Hose Size

9.7 mm
3/8”

Outside Diameter 16.0 mm Max Working Pressure 280 bar Quantity
Available on Request
Code THR808NC D.N 12 Hose Size

13.0 mm
1/2”

Outside Diameter 20.3 mm Max Working Pressure 245 bar Quantity
Available on Request
Code THR810NC D.N 16 Hose Size

16.0 mm
5/8”

Outside Diameter 23.5 mm Max Working Pressure 195 bar Quantity
Available on Request
Code THR812NC D.N 19 Hose Size

19.2 mm
3/4”

Outside Diameter 26.5 mm Max Working Pressure 165 bar Quantity
Available on Request
Code THR816NC D.N 25 Hose Size

25.6 mm
1”

Outside Diameter 34.7 mm Max Working Pressure 145 bar Quantity
Available on Request

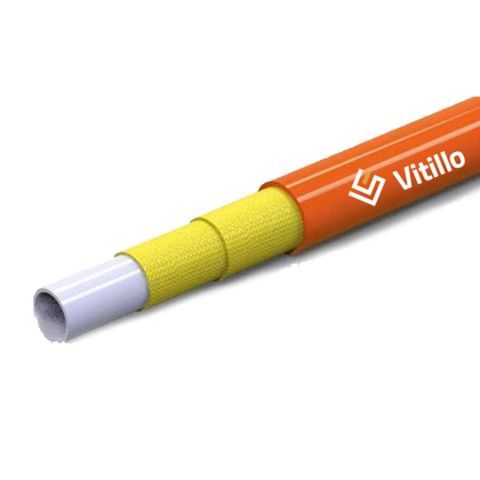

  • Hose Type: Thermoplastic hose
  • Application : High Pressure Hydraulic System
  • Available Cover : Standard
  • Available Cover Color : Orange
  • Operating Temperature Range: - 40°C/+100°C (-40°F to +212°F) Water: + 70°C (+158°F)
  • Tube : Thermoplastic polyester
  • Reinforcement : 2 textile fiber
  • Cover : Antiabrasion polyurethane stabilized to UV RAYS

Hose features:  Safety factor 4:1


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
