TEKNO R7 SAE 100R7 - UNI EN 855 - ISO 3949

Vitillo
Code THR703 D.N 5 Hose Size

4.8 mm
3/16”

Outside Diameter 10.0 mm Max Working Pressure 210 bar Quantity
Available on Request
Code THR704 D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 11.8 mm Max Working Pressure 200 bar Quantity
Available on Request
Code THR705 D.N 8 Hose Size

8.0 mm
5/16”

Outside Diameter 14.3 mm Max Working Pressure 190 bar Quantity
Available on Request
Code THR706 D.N 10 Hose Size

9.7 mm
3/8”

Outside Diameter 16.0 mm Max Working Pressure 175 bar Quantity
Available on Request
Code THR708 D.N 12 Hose Size

13.0 mm
1/2”

Outside Diameter 20.3 mm Max Working Pressure 140 bar Quantity
Available on Request
Code THR710 D.N 16 Hose Size

16.0 mm
5/8”

Outside Diameter 23.5 mm Max Working Pressure 105 bar Quantity
Available on Request
Code THR712 D.N 19 Hose Size

19.2 mm
3/4”

Outside Diameter 26.5 mm Max Working Pressure 90 bar Quantity
Available on Request
Code THR716 D.N 25 Hose Size

25.6 mm
1”

Outside Diameter 33.6 mm Max Working Pressure 70 bar Quantity
Available on Request

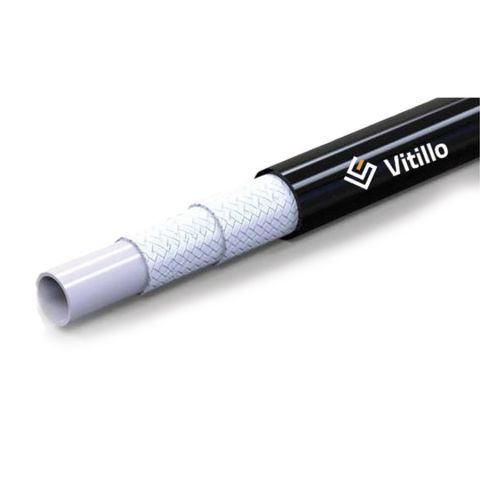

  • Hose Type: Thermoplastic hose
  • Application : Hoising - Hydraulic System - Medium Pressure Hydraulic System
  • Available Cover : Standard
  • Available Cover Color : Black
  • OOperating Temperature Range: - 40°C/+100°C (-40°F to +212°F) Water: + 70°C (+158°F)
  • Tube : Thermoplastic polyester
  • Reinforcement : 2 polyester fiber
  • Cover : Antiabrasion polyurethane stabilized to UV RAYS
  • Type Approval: MSHA

Hose features:  Safety factor 4:1


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
