TEKNO MTH2 SAE 100R2

Vitillo
Code THMTH204 D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 13.5 mm Max Working Pressure 400 bar Quantity
Available on Request
Code THMTH205 D.N 8 Hose Size

8.0 mm
5/16”

Outside Diameter 15.1 mm Max Working Pressure 350 bar Quantity
Available on Request
Code THMTH206 D.N 10 Hose Size

9.7 mm
3/8”

Outside Diameter 17.0 mm Max Working Pressure 330 bar Quantity
Available on Request
Code THMTH208 D.N 12 Hose Size

13.0 mm
1/2”

Outside Diameter 21.5 mm Max Working Pressure 275 bar Quantity
Available on Request
Code THMTH210 D.N 16 Hose Size

16.3 mm
5/8”

Outside Diameter 24.5 mm Max Working Pressure 250 bar Quantity
Available on Request
Code THMTH212 D.N 19 Hose Size

19.2 mm
3/4”

Outside Diameter 27.5 mm Max Working Pressure 215 bar Quantity
Available on Request
Code THMTH216 D.N 25 Hose Size

25.6 mm
1”

Outside Diameter 35.0 mm Max Working Pressure 165 bar Quantity
Available on Request

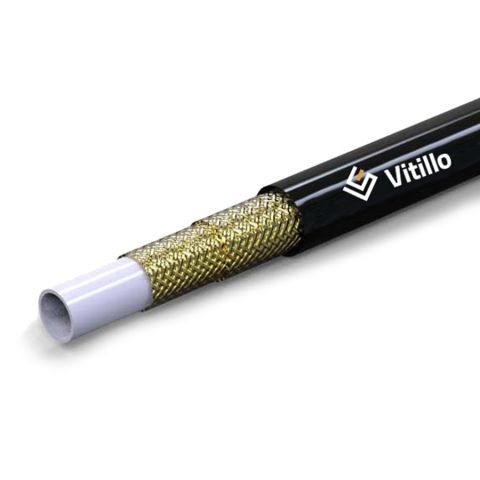

  • Hose Type: Thermoplastic hose
  • Application : High Pressure Hydraulic System
  • Available Cover : Standard
  • Available Cover Color : Black
  • OOperating Temperature Range: - 40°C/+100°C (-40°F to +212°F) Water: + 70°C (+158°F)
  • Tube : Thermoplastic polyester
  • Reinforcement : 2 high tensile steel braids
  • Cover : Antiabrasion polyurethane stabilized to UV RAYS

Hose features:  Safety factor 4:1


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
