TEKNO AGRI 1SC EN 857 1SC - ISO 11237

Vitillo
Code TH1SC04AGRI D.N 6 Hose Size

6.4 mm
1/4”

Outside Diameter 12.2 mm Max Working Pressure 225 bar Net Price Quantity
Available on Request
Code TH1SC05AGRI D.N 8 Hose Size

7.9 mm
5/16”

Outside Diameter 13.5 mm Max Working Pressure 215 bar Net Price Quantity
Available on Request
Code TH1SC06AGRI D.N 10 Hose Size

9.5 mm
3/8”

Outside Diameter 15.2 mm Max Working Pressure 180 bar Net Price Quantity
Available on Request
Code TH1SC08AGRI D.N 12 Hose Size

12.8 mm
1/2”

Outside Diameter 19.1 mm Max Working Pressure 160 bar Net Price Quantity
Available on Request
Code TH1SC10AGRI D.N 16 Hose Size

16.0 mm
5/8”

Outside Diameter 22.4 mm Max Working Pressure 130 bar Net Price Quantity
Available on Request
Code TH1SC12AGRI D.N 19 Hose Size

19.0 mm
3/4”

Outside Diameter 26.0 mm Max Working Pressure 105 bar Net Price Quantity
Available on Request
Code TH1SC16AGRI D.N 25 Hose Size

25.4 mm
1”

Outside Diameter 33.4 mm Max Working Pressure 88 bar Net Price Quantity
Available on Request

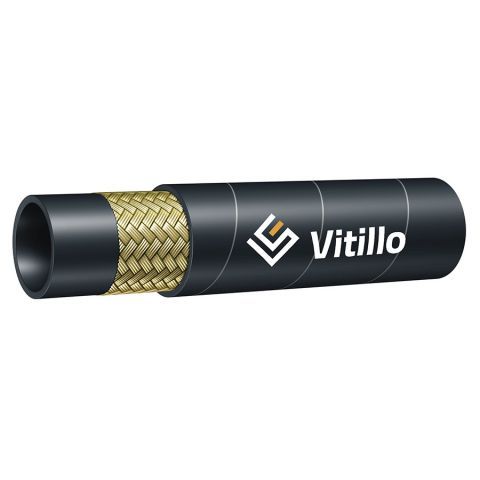

  • Hose Type: Standard braided hose
  • Application : Agricultural sector - Medium Pressure Hydraulic System - Return lines
  • Available Cover : Standard
  • Available Cover Color : Black
  • Operating Temperature Range: - 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
  • Tube : Oil resistant synthetic rubber
  • Reinforcement : 1 high tensile steel braid
  • Cover : Synthetic rubber

Hose features:  Reduced bending radius


PLEASE NOTE: The price shown is per metre of hose, the maximum single coil length is 100m for 1/4″, 3/8″, 1/2″ & 3/4″, 50m for 1″
