74328-DAM

AAKADAB00000A0B

Eaton

In Stock Eaton 74328-DAM
FeatureCodeDescription

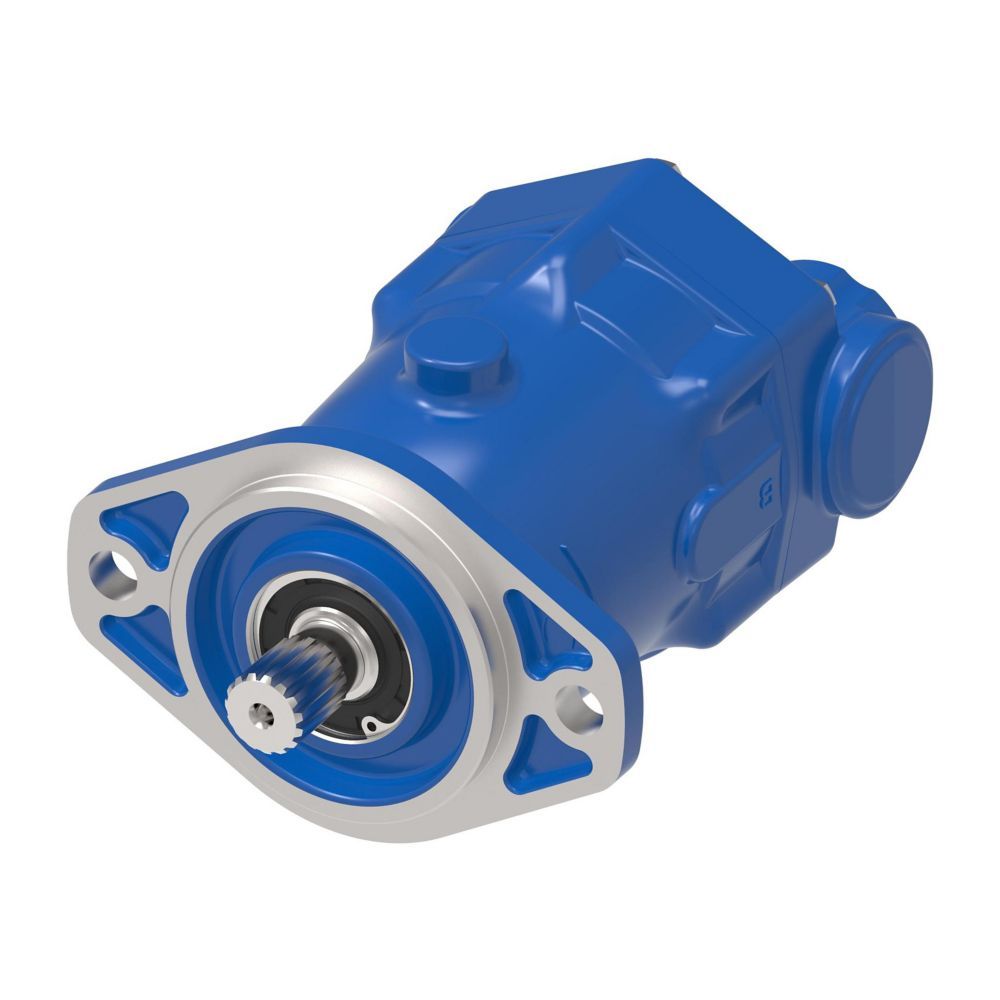

CODE TITLEAAK49.5 CM3/R [3.02 IN3/R] FIXED DISPLACEMENT AXIAL PISTON MOTOR
OUTPUT SHAFTADSTRAIGHT SHAFT, DIAMETER 28.58 [1.125], KEYWAY 7.9 X 32.5 [.31 X 1.28], SHAFT EXTENSION 46 [1.81] (KEY INCLUDED)
MAIN PORTS SIZE & LOCATIONA1.0625-12 UN-2B SAE O-RING PORTS - SIDE
DRAIN PORTS SIZE & LOCATIONB.750-16 UNF-2B SAE O-RING PORT - TOP & BOTTOM, BOTTOM PLUGGED (HOUSING)
AUXILIARY MOUNTING FEATURES (REAR)0NONE
DISPLACEMENT OPTIONS0AS GIVEN IN CODE TITLE
SPECIAL FEATURES00NO SPECIAL FEATURES
PAINT0APRIMER PER SPEC 209-13A
IDENTIFICATION0STANDARD
DESIGN CODEBVALVE PLATE
€735.00
