AMI 3
AMI Oleodinamica
В наличии

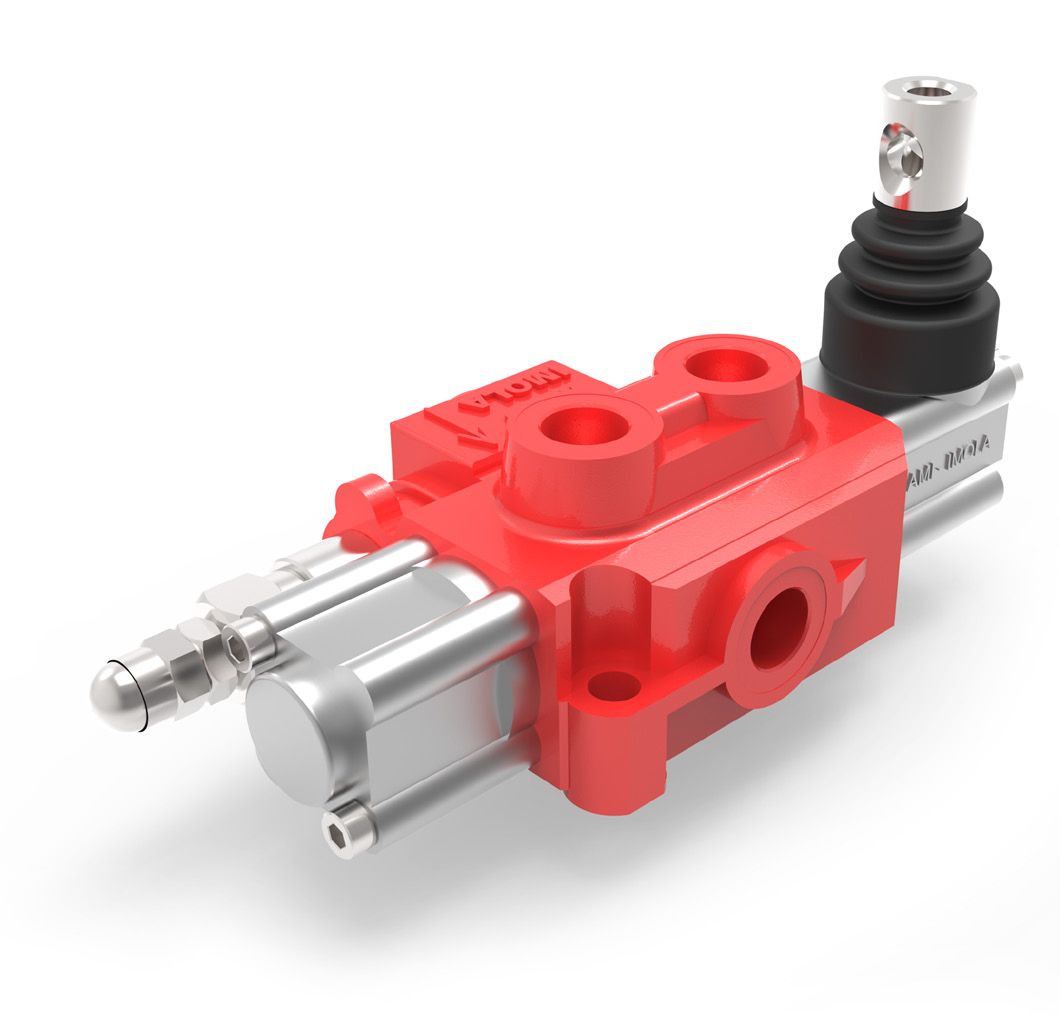

AMI 3 Monoblock Directional Control Valve
Manufactured in one section only
- Nominal flow rate 40 l/min
- MAX working pressure 300 bar
- MAX return backpressure 80 bar
- Standard Pressure Relief valve, may be set (on request may be set from 10 to 250 bar) da 60 a 300 bar
- Single-acting check valve on inlet
- Negative spool overlapping
- Working temperature min.-30°C ÷ max. 80°C
- MAX spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) 18 ml/min
