Use and Operation
Flow is free in one direction and fixed in the reverse one. Flow is fixed as flow adjustment depends on the throttling hole diameter.
Materials and Features
Body: zinc-plated steel
Internal Parts: hardened and ground steel
Seals: BUNA N standard
Poppet Type: standard
Applications

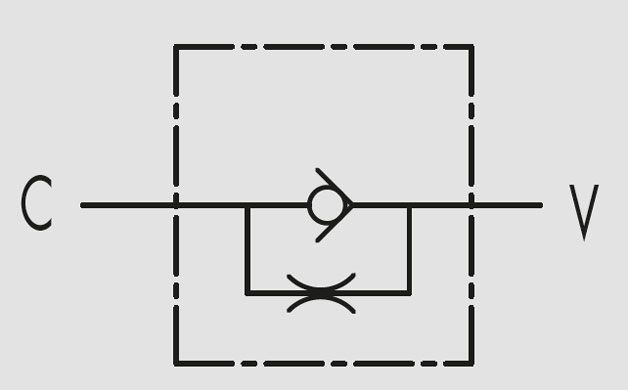

Connect V to the pressure flow and C to the actuator. Flow is free from V to C and fixed in the reverse one. Throttling is obtained through one or two calibrated holes, the diameter of which has to be specified in the order.
On Request
other settings available: 1-3-5-8 Bar (please specify in the description the desired setting)
