VBPDE SC - Compact Double Pilot Operated Check Valve With Adjustable Banjo Union

Oleodinamica Marchesini В наличии
Код V0112 Тип VBPDE 3/8” L SC Цена €28.60 Количество

Use and Operation
Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.This valve is ideal for very short distance centre cylinders. The check cartridge serves also as fixing banjo, allowing after nut releasing a 90°regulation.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications

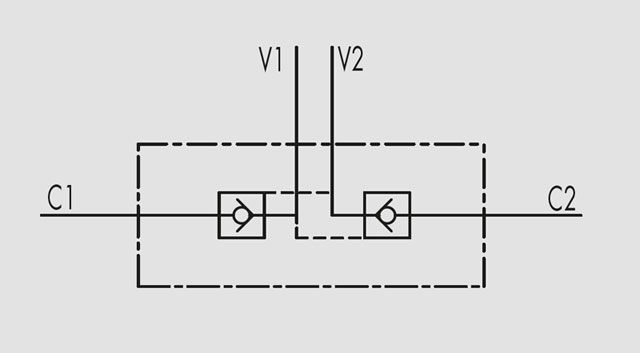

Connect V1 and V2 to the pressure flow, connect C1 directly to the cylinder through the 3/8” screw and C2 to the cylinder through the banjo.

On Request

  • without seal on pilot piston
  • ¼" V1 and V2
